The Role of Vehicle Control Laboratory Research
Discover the critical role of vehicle control laboratory research in enhancing safety and efficiency in automotive development. Learn more!
!Engineer calibrates vehicle control module in lab
---
TL;DR: > > - Vehicle control laboratory research plays a crucial role in developing and certifying control algorithms before road testing, reducing costs and risks. Technologies like HiL systems, scaled X-by-wire platforms, and standardized protocols enable repeatable, instrumented validation, ensuring reliable and safe vehicle control development. Early investment in lab infrastructure improves overall safety, shortens development cycles, and enhances organizational discipline in control system engineering.
---
Road testing alone cannot validate the complexity of modern vehicle control systems. The role of vehicle control laboratory research extends far beyond supplemental verification — it forms the foundational infrastructure through which control algorithms are developed, stress-tested, and certified before a prototype ever turns a wheel on public pavement. For research scientists and engineers working across automotive and transportation sectors, understanding how hardware-in-the-loop systems, scaled X-by-wire platforms, and standards-based test procedures interact within a structured lab environment is not optional knowledge. It is the technical literacy that separates efficient development programs from costly, iterative ones reliant on road trial-and-error.
Table of Contents
- Key Takeaways
- Core technologies in vehicle control lab research
- Standards-linked validation in vehicle control labs
- Impact on development lifecycle and safety
- Emerging trends and challenges
- From the lab bench: why structured validation cannot be skipped
- How Aresresearchlab supports your laboratory research
- FAQ
Key Takeaways
| Point | Details | | --- | --- | | Lab research precedes road testing | Structured laboratory validation identifies control system faults earlier and at lower cost than physical road tests. | | HiL systems enable closed-loop ECU testing | Hardware-in-the-loop setups allow repeatable, instrumented evaluation of traction, stability, and cruise control modules. | | Standards compliance begins in the lab | ISO 13674, ISO 7401, and SAE J266 protocols are reproduced in controlled lab environments for measurable, certifiable results. | | Scaled platforms de-risk sim-to-real transitions | 1:5-scale X-by-wire vehicles provide an instrumented intermediate step between pure simulation and full-scale prototype testing. | | Lab research shortens development cycles | Virtual calibration workflows tied to lab validation reduce physical bench iterations and prototype dependency. |
Core technologies in vehicle control lab research
Vehicle control laboratory research, referred to in formal academic and industry contexts as *vehicle dynamics testing* or *vehicle control system validation*, depends on a specific suite of technologies that collectively enable safe, repeatable, and granular evaluation of control system behavior.
Hardware-in-the-loop systems
Hardware-in-the-loop (HiL) testing represents one of the most consequential advances in automotive research functions over the past two decades. In a HiL configuration, a real electronic control unit (ECU) operates within a simulated vehicle environment: the ECU receives sensor signals from a real-time simulator, executes its control logic, and sends actuation commands back into the simulation. The loop closes without requiring a physical vehicle.
The University of Pennsylvania’s xLAB developed the AutoPlug system, which interconnects production-grade ECUs with a driving simulator for closed-loop evaluation of traction control, electronic stability control, and adaptive cruise control modules. This architecture demonstrates a critical design principle in effective HiL labs: correlation targets must be defined so that simulated outputs such as yaw rate, friction coefficient estimation, and lateral acceleration align with controller expectations, ensuring that a test pass in the lab corresponds to genuine behavioral compliance rather than simulation artifact.
Scaled X-by-wire platforms
Between full simulation and a physical prototype sits a category of test infrastructure that remains underutilized in many research programs: scaled X-by-wire platforms. These are reduced-scale physical vehicles equipped with independent electronic control of drive, steering, braking, and suspension axes.
!Student testing scaled MARV platform in lab
The 1:5-scale MARV platform (Multi-Actuated Research Vehicle) exemplifies this class of hardware. With independent wheel drive, steer-by-wire, brake-by-wire, and suspension-by-wire capabilities, MARV provides an instrumented physical environment where control algorithms interact with real actuator dynamics, tire contact forces, and inertial responses at a manageable scale. Practitioners use scaled X-by-wire platforms as a strategic verification step, carefully managing actuator and sensor constraints to quantify the sim-to-real gap before committing to full-scale prototype testing.
Steering test benches and actuator-level validation
A third category of lab technology addresses one of the subtler challenges in vehicle control system development: reproducing realistic steering feel under controlled conditions. The MXsteerHiL steering test bench by MdynamiX connects physical steering hardware to simulation environments, enabling early-stage validation of both conventional electric power steering systems and steer-by-wire architectures. Faults in torque feedback calibration, return-to-center behavior, and on-center sensitivity can be identified before road testing introduces confounding variables.
Key capabilities across these technology classes include:
- Closed-loop ECU validation without exclusive road reliance, enabling fault isolation at the software level
- Repeatable maneuver execution that eliminates driver variability as a confounding factor in performance evaluation
- Actuator-level characterization of steering, braking, and suspension response under defined input conditions
- Safe ADAS function testing in scenarios that would be hazardous or logistically infeasible on a public road
Pro Tip: *When configuring a HiL test environment, define controller-level correlation targets before writing test scripts. A lab setup that passes simulation accuracy metrics but misaligns with ECU input expectations will produce false positives that propagate through the validation chain.*
Standards-linked validation in vehicle control labs
The rigor of automotive control laboratory research depends not only on instrumentation but on the standardized procedures that govern how tests are designed, executed, and interpreted. Without protocol alignment, results from one lab cannot be compared to another, and compliance claims carry no defensible basis.

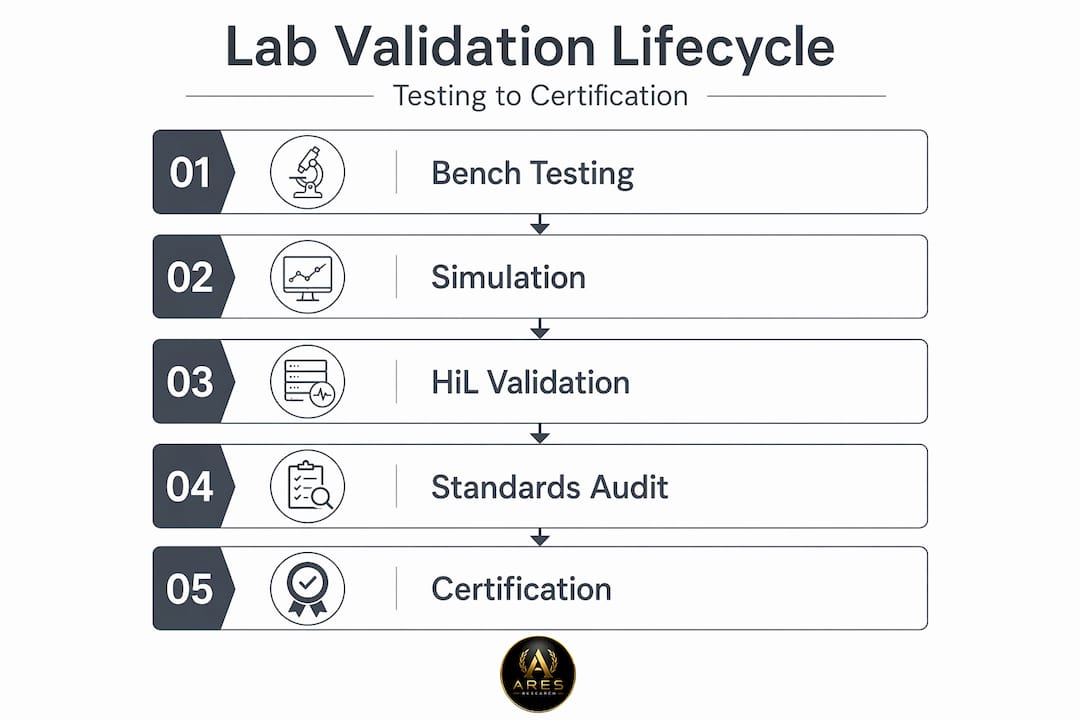

!Infographic: vehicle control lab validation steps
ISO and SAE protocols in practice
MTS vehicle dynamics laboratories follow ISO 13674 (on-center handling), ISO 7401 (lateral transient response), SAE J670 (vehicle dynamics terminology), and SAE J266 (steady-state directional control) as part of electronic stability control evaluation and full-vehicle dynamic characterization. These standards define the maneuver inputs, measurement channels, data sampling requirements, and acceptance criteria that transform lab outputs into certifiable engineering evidence.
The following table summarizes key standards used in vehicle control laboratory research, their primary purpose, and the typical lab hardware associated with each:
| Standard | Primary purpose | Typical lab equipment | | --- | --- | --- | | ISO 13674 | On-center handling and weave test | Steering test bench, force/torque sensors | | ISO 7401 | Lateral transient response (step steer) | Flat-Trac tire test system, HiL simulator | | SAE J266 | Steady-state cornering behavior | Handling roadway, vehicle dynamics instrumentation | | SAE J670 | Vehicle dynamics terminology and definitions | Reference standard for all test reporting | | ISO 26262 | Functional safety for road vehicle E/E systems | Full HiL ECU validation rigs |
Deterministic hardware and maneuver reproduction
Reproducing ISO-defined maneuvers in a laboratory context requires deterministic control hardware. Systems such as MTS FlexTest controllers and Flat-Trac tire test machines provide the force-displacement measurement infrastructure necessary to characterize tire behavior as an input to vehicle dynamics simulations. When a lab needs to reproduce a step-steer maneuver for ISO 7401 compliance, the test protocol specifies steering wheel angle rate, amplitude, and vehicle speed precisely, so that results across different labs and program phases remain directly comparable.
This level of reproducibility matters for one specific and often underappreciated reason: tuning and certification are iterative processes. A control algorithm adjusted after one test run must be re-evaluated under identical input conditions to confirm that the modification produced the intended change without introducing regression. Lab-based maneuver reproduction makes that iteration tractable.
Pro Tip: *When correlating simulation models to physical lab results, prioritize matching frequency-domain response (phase and gain) over time-domain waveform similarity. Phase mismatches at high frequencies predict controller instability in ways that time-domain correlation often obscures.*
Impact on development lifecycle and safety
The practical impact of vehicle control laboratory research on the development lifecycle is measurable in terms of prototype iterations avoided, test hours recovered, and safety incidents prevented during pre-production validation.
Development cycle compression
Virtual calibration workflows integrated with lab-based validation have demonstrated significant reductions in physical bench tests and development cycle time. When control software can be evaluated against a physics-accurate simulation running on real ECU hardware, engineers identify calibration errors within hours of code modification rather than scheduling a vehicle test weeks later. The cumulative effect across a full program is substantial: prototype builds that previously required multiple iterations to achieve target handling balance can converge faster with lab validation providing a continuous feedback loop.
ADAS and autonomous driving validation
Advanced driver assistance systems and autonomous driving functions present a particular challenge for road-based validation: the most safety-critical scenarios, such as emergency braking edge cases, crosswind disturbance rejection, and lane-keeping under partial actuator failure, cannot be induced safely or reproducibly on public roads. Vehicle control labs address this directly.
The following areas illustrate how lab research supports ADAS and autonomous vehicle development:
- Scenario-based fault injection: HiL systems can inject sensor noise, actuator delay, or partial failure conditions into a closed-loop test to evaluate controller degradation behavior without physical risk
- Transition scenario testing: Handoff sequences between automated and manual driving modes can be tested under controlled conditions to confirm human-machine interface latency and takeover response compliance
- Steer-by-wire validation: Fully decoupled steering architectures, where no mechanical connection exists between the steering wheel and road wheels, require extensive lab validation before road exposure, given the safety criticality of the actuator chain
- Post-deployment ECU updates: The AutoPlug framework supports remote code updates and diagnostic verification of ECU control software, enabling labs to validate patch revisions targeting software-related recalls before field deployment
Safety validation before road exposure
Validation shifting from road testing to instrumentation-rich laboratory verification enables precise fault diagnosis and efficient iteration of control software. This shift does not eliminate road testing. It ensures that when a vehicle reaches the road, the control system has already passed structured verification under the most demanding reproducible conditions the lab can generate.
Emerging trends and challenges
The technical frontier of automotive control laboratory research is defined by two intersecting forces: the increasing fidelity of virtual environments and the persistent difficulty of reproducing physical actuator dynamics accurately enough to support those environments.
Driver-in-the-loop integration
Static and dynamic driving simulators connected to HiL test benches create driver-in-the-loop (DiL) configurations that introduce human behavioral variability as a controlled test input. The MXsteerHiL platform supports connection to driving simulators, enabling both objective measurement channels and subjective driver assessment within the same test session. This integration allows researchers to correlate objective metrics such as steering return-to-center torque with driver-reported feedback quality, capturing subjective dimensions of vehicle behavior that pure instrumentation cannot address.
Emerging challenges and research directions in this space include:
- Actuator bandwidth limitations: Scaled test platforms face constraints in reproducing high-frequency road surface inputs because actuator bandwidth does not scale linearly with vehicle size. Quantifying this gap is necessary before extrapolating scaled platform results to full-vehicle behavior.
- Sim-to-real gap quantification: Reproducible methods for measuring sim-to-real discrepancies across multiple test domains (tire, suspension, powertrain) remain an active research priority.
- Expanded virtual calibration scope: Automated driving validation requires calibration coverage across thousands of scenario variants. Lab-based virtual calibration workflows, supported by HiL infrastructure, are being extended to address this scale requirement.
- Realistic steering feel reproduction: Actuator dynamics in steering test benches must replicate friction, inertia, and compliance characteristics of the physical system with sufficient fidelity to prevent subjective driver feedback from diverging from objective instrumented results.
From the lab bench: why structured validation cannot be skipped
In my experience working alongside research programs that have attempted to compress development timelines by reducing laboratory validation stages, the outcome is consistent: faults that could have been isolated within hours on a HiL rig instead surface during road testing, where diagnosis requires significantly more time, more instrumentation, and more risk exposure.
What I have observed, and what rarely appears in formal publications, is that the most consequential benefit of vehicle control lab infrastructure is not the individual test outcome. It is the organizational discipline that structured laboratory validation imposes on the control software development process. When engineers know that a change to a stability control algorithm will be evaluated under ISO 7401 conditions on the HiL rig before the next road test is scheduled, they write cleaner code, document their calibration rationale more carefully, and approach the test with a specific hypothesis in mind rather than a general expectation.
I have also found that scaled X-by-wire platforms are chronically undervalued in program planning discussions. Teams regularly justify skipping the scaled platform stage because it introduces hardware procurement and integration time. What they underestimate is the risk-adjusted cost savings when a scaled platform catches a fundamental control architecture flaw before that flaw is embedded in a full-scale prototype. Revisiting a steer-by-wire authority limit on a 1:5-scale MARV costs a fraction of what the same correction costs on a full vehicle.
My position is straightforward: invest in lab infrastructure early, define correlation targets explicitly, and treat the lab not as a compliance checkpoint but as the primary development environment for control software. The road test validates conclusions. The lab generates them.
*— Ares*
