What Does Retention Time in HPLC Indicate?
Discover what retention time in HPLC indicates and how to interpret it accurately. Avoid common missteps with our expert guide!
!Chemist recording retention time at HPLC bench
---
TL;DR: > > - Retention time in HPLC indicates the total elapsed time from injection until analyte detection, reflecting analyte-stationary phase interactions and system factors. > - It serves as a key parameter for compound identification when combined with orthogonal data and is most meaningful when normalized using dead time and retention factor k.
---
Retention time is one of the most frequently measured yet commonly misinterpreted parameters in high-performance liquid chromatography. Understanding what does retention time HPLC indicate goes far beyond reading a number off a chromatogram. Retention time encodes information about analyte-stationary phase interactions, mobile phase composition, system hardware, and column chemistry simultaneously. Researchers who treat it as a simple timing stamp routinely misdiagnose method problems, misidentify compounds, and make poor decisions during method development. This guide resolves those misconceptions with technical precision.
Table of Contents
- Key Takeaways
- What retention time in HPLC actually indicates
- Retention time’s role in compound identification and method development
- Causes and implications of retention time shifts
- Interpreting retention time data: best practices
- My perspective on what retention time really tells us
- Explore Aresresearchlab’s research resources for HPLC analysis
- FAQ
Key Takeaways
| Point | Details | | --- | --- | | Retention time reflects interactions | It measures total elapsed time from injection to detection, encoding analyte-stationary phase affinity and system contributions. | | Net retention time is more informative | Subtracting dead time (t0) from observed retention time isolates true analyte-column interaction time for meaningful comparisons. | | Retention factor k drives method quality | Optimal k values of 1 to 10 in isocratic separations balance resolution and run time without extending analysis unnecessarily. | | Retention time shifts require systematic diagnosis | Differentiating between system-level causes and column chemistry changes requires monitoring t0 alongside analyte retention simultaneously. | | Orthogonal data strengthens identification | Retention time alone does not confirm identity; combining it with accurate mass or spectral data significantly improves confidence. |
What retention time in HPLC actually indicates
The HPLC retention time meaning is deceptively specific: it is the elapsed time from sample injection until an analyte is detected at the detector, not at the column exit. This distinction matters in practice because extra-column volumes, including tubing, injector loops, and detector flow cells, all contribute to the observed retention time (tR,obs) without reflecting any chromatographic separation at all.
Observed retention time versus net retention time
When precision is required for fundamental studies or inter-laboratory comparisons, analysts work with net retention time rather than the raw observed value. Net retention time is calculated by subtracting dead time (t0, also called void time or tm) from the observed retention time:
- Observed retention time (tR,obs): Time from injection to peak detection, including all system contributions
- Dead time (t0): Time an unretained analyte takes to pass through the system; measured using a dead-time marker such as uracil or thiourea
- Net retention time (t’R): tR,obs minus t0, representing only the time the analyte spent interacting with the stationary phase
- Relative retention time: Net retention time of a compound divided by that of a reference compound under identical conditions, used to normalize across instruments or methods
The implication is that two chromatographic systems producing different observed retention times for the same compound may actually be performing identically, provided their dead times differ proportionally. Analysts who compare only absolute retention times across systems routinely reach incorrect conclusions about method equivalence.
Extra-column time and peak shape considerations
Extra-column time (tEX) is a subtler contribution that few laboratories account for explicitly. It encompasses dispersion introduced by the injector, connecting tubing, and detector, all of which broaden the peak and shift the apparent center of mass. Retention time can be measured at the peak apex, as the first statistical moment (mean), or at the peak start, and each method yields a slightly different value. For asymmetric peaks caused by column overloading or poor packing homogeneity, the apex and mean diverge noticeably, which creates reproducibility problems if the measurement method is not standardized across runs.
Pro Tip: *When setting up a new method, always measure and record t0 using an unretained marker at the start of the project. This single reference point allows you to calculate retention factor k immediately and diagnose system changes with far greater speed later in the method lifecycle.*
Retention time’s role in compound identification and method development
The importance of retention time HPLC extends well beyond a label on a chromatogram peak. In qualitative analysis, retention time serves as the primary matching criterion when identifying unknown compounds against reference libraries. In method development, it defines the chromatographic space available for separating coeluting analytes and directly governs the resolution obtained between adjacent peaks.
!Scientist reviewing HPLC chromatogram and laptop
Retention time and compound identification
Matching an unknown analyte to a reference compound by retention time under identical conditions is the foundational approach to HPLC-based identification. When used in automated LC/HRMS screening workflows, retention time tolerance windows are typically defined as tR ± 3 standard deviations derived from replicate injections of the reference compound. Identity confirmation then requires both retention time matching and accurate mass agreement within a defined ppm tolerance, because neither parameter alone is sufficient in complex matrices.
In pesticide residue analysis and environmental screening applications, retention time windows combined with accurate mass data dramatically reduce false positive rates compared to retention time alone. The retention time in these contexts functions as a statistical filter, not an absolute identifier, which is a critical conceptual shift for researchers transitioning from simple UV-based methods to high-resolution mass spectrometry platforms.
Retention factor k and its relationship to resolution
The retention factor k provides a dimensionless representation of how strongly an analyte interacts with the stationary phase relative to the mobile phase, calculated as k = t’R / t0. It is far more informative than absolute retention time when comparing separations across instruments, columns, or flow rates.

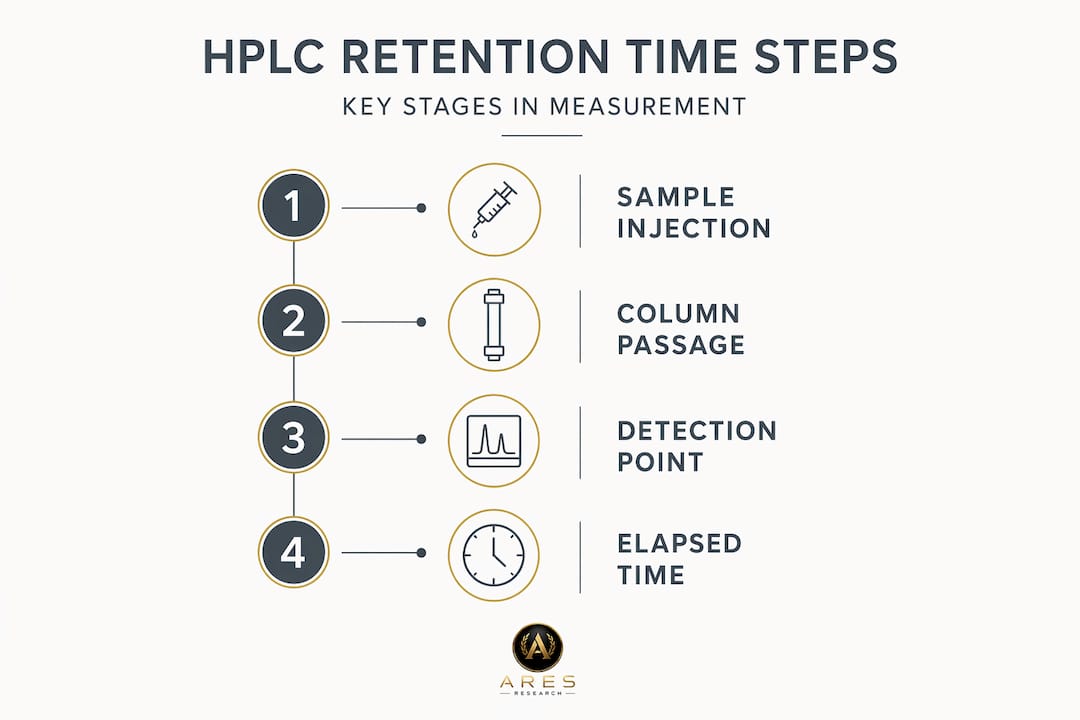

!Infographic explaining HPLC retention time steps
| Retention factor (k) range | Separation quality | Practical consequence | | --- | --- | --- | | k < 1 | Poor resolution, near void time | High risk of matrix interference and peak co-elution | | k = 1 to 10 | Optimal for isocratic work | Resolution improves efficiently; run times remain practical | | k = 10 to 20 | Acceptable but diminishing returns | Resolution gain slows; run time increases noticeably | | k > 20 | Excessive retention | No resolution benefit; broad, diluted peaks; very long runs |
For isocratic separations, resolution improves with k up to approximately 10, beyond which increasing retention time extends the run without meaningful selectivity gain. A k value below 1 places the analyte dangerously close to the void, where matrix-derived peaks are concentrated and co-elution is highly probable.
Researchers optimizing a reversed-phase method for a series of structurally similar peptides, for example, should target k values across the 2 to 8 range for the most critical pairs. If the least retained analyte elutes with k = 0.5, adjusting the organic modifier percentage or switching to a more retentive stationary phase phase will resolve the issue far more predictably than empirical trial and error.
- Retention factor k normalizes retention time against dead time, enabling direct comparison across systems
- k < 1 indicates the analyte is spending more time in the mobile phase than the stationary phase, which corresponds to inadequate retention and poor resolution
- Optimal k of 1 to 10 provides the most favorable balance of resolution, peak shape, and analysis speed
- Retention time modeling using k as the primary variable allows in silico method optimization before committing to extensive experimental work
Causes and implications of retention time shifts
Retention time drift is one of the most frequently encountered and poorly diagnosed problems in routine HPLC work. Understanding what does retention time HPLC indicate when values shift unexpectedly requires distinguishing between four distinct patterns: gradual increase, gradual decrease, random jitter, and abrupt step change. Each pattern points to a different category of cause.
System-related causes of retention time drift
Hardware and operational variables account for a substantial proportion of observed retention time drift. Temperature is particularly impactful: a temperature shift of approximately 1 °C produces a retention time change of roughly 1 to 2% for typical reversed-phase analytes. Over a working day in a laboratory without active column temperature control, ambient fluctuations of 3 to 5 °C are common and can generate visibly inconsistent chromatograms.
Flow rate inaccuracies from pump wear, microbubbles in the solvent lines, or partially blocked frits produce proportional shifts in retention time across all analytes simultaneously. Leaks downstream of the pump reduce effective flow rate and extend retention times, while leaks upstream can introduce air and cause irreproducible flow pulses. System pressure changes that correlate with retention time shifts are strong indicators of a hardware-related origin.
The following diagnostic sequence efficiently isolates system-level causes:
- Check dead time (t0) first. Inject the dead-time marker under the current method. If t0 has changed proportionally with analyte retention, the cause is systemic (flow rate, temperature, or volume-related) rather than chemical.
- Calculate retention factor k for the shifted peak. If k remains constant while tR changes, the selectivity of the column is intact and the shift originates in the physical system parameters, such as flow rate.
- Inspect column temperature records. Review the column oven temperature log for deviations coinciding with the retention time change. A 2% shift in retention time correlating with a 1 to 2 °C temperature excursion confirms thermal origin.
- Examine system pressure traces. Elevated or erratic back-pressure alongside retention time shifts typically indicates a partially blocked frit, guard column saturation, or void formation at the column inlet.
- Check for gradient dwell volume differences. In gradient methods, uniform delayed shifts in all peaks after a method transfer to a different instrument suggest the new system has a larger gradient dwell volume, not a chemistry change. This pattern is frequently misdiagnosed as column degradation.
- Use internal standards. An internal standard co-injected with every sample provides a real-time reference. If the internal standard retention time shifts, the cause is system-wide; if only target analyte retention time shifts, the cause is sample-specific or chemical in nature.
Pro Tip: *Maintain a retention time trend chart for a system suitability compound across every analytical sequence. Plotting these values over weeks reveals gradual drift patterns long before they exceed acceptance criteria, giving you time to intervene without invalidating a batch.*
Column chemistry and mobile phase contributions
Mobile phase composition changes, including solvent batch variation, improper preparation, or pH drift in buffered systems, alter the partitioning equilibrium for every analyte and produce broad, non-specific retention time shifts. If dead time remains stable but analyte retention shifts, the cause lies in mobile phase chemistry or column stationary phase changes rather than hardware. This distinction dramatically narrows the diagnostic search.
Column chemistry degradation manifests as progressive retention time decrease for basic compounds in reversed-phase systems. Silanol activity changes, stationary phase hydrolysis under extreme pH conditions, or irreversible adsorption of matrix components all alter the effective column chemistry over time and produce characteristic patterns that an experienced analyst can recognize from the retention time trend alone.
Interpreting retention time data: best practices
Effective HPLC retention time analysis requires contextualizing every observed value against system parameters rather than evaluating it in isolation. Absolute retention time has limited meaning without the associated dead time, flow rate, column dimensions, and mobile phase composition on record. Below are the practices that experienced analysts apply consistently to maintain interpretive rigor.
- Always record and track t0 alongside analyte retention time. The ratio tR / t0 provides an immediate check on whether observed changes are chemical or physical in origin, and retention factor k derived from this ratio is the appropriate currency for cross-system comparisons.
- Define retention time acceptance windows statistically. During method validation, collect at least 20 replicate injections of the system suitability compound under representative conditions and set the acceptance window at ± 3 standard deviations. This approach captures real variability rather than arbitrary tolerance values.
- Avoid relying on absolute retention time for definitive compound identification. As established in LC/HRMS screening applications, retention time windows function as a statistical filter. Definitive identification requires orthogonal confirmation, whether through accurate mass, UV spectral match, or MS/MS fragmentation pattern, particularly for novel or structurally similar analytes in complex biological matrices.
- Account for method transfer retention time shifts proactively. Retention time shifts from 6 to 12 min to 12 to 28 min have been documented during transfers between nominally identical HPLC systems, driven entirely by differences in gradient dwell volume. Characterize the dwell volume of every system before transfer and adjust the gradient program accordingly.
- Do not over-interpret minor retention time fluctuations within a validated window. Chromatographic systems have inherent variability. If a peak migrates by 0.05 minutes but remains well within the acceptance criterion and the peak shape is normal, the data are valid. Chasing insignificant variation consumes resources without improving data quality.
- Monitor retention times across a compound set rather than individually. Systematic shifts affecting all analytes uniformly point to physical causes. Selective shifts affecting only certain analytes, particularly those of similar polarity or ionization state, suggest mobile phase or column chemistry changes. This pattern recognition approach is more efficient than single-peak monitoring.
Researchers working with high-purity reference compounds benefit from understanding peptide purity verification by HPLC, where retention time data directly informs both structural identity and purity assessment in pharmaceutical and peptide research contexts.
My perspective on what retention time really tells us
I have spent considerable time working with HPLC data across a range of research applications, and one observation stands out consistently: most retention time problems in the laboratory are not chromatography problems. They are documentation problems.
When analysts record only the retention time number without capturing t0, column lot, mobile phase batch, and instrument temperature at the time of injection, they lose the context that makes retention time interpretable. The number itself is almost meaningless without its frame of reference. I find that laboratories experiencing the most persistent retention time reproducibility issues are almost always the same ones with the least structured system suitability records.
What I have also learned is that the reflexive response to an unexpected retention time shift, which is to replace the column, solves the problem far less often than working through a structured diagnostic sequence. Column replacement is expensive and time-consuming. In my experience, the majority of shifts are attributable to mobile phase preparation inconsistencies, pump seal wear, or temperature excursions, all of which are correctable without hardware replacement.
The other area where I consistently see researchers underinvested is in calculating retention factor k. Analysts who develop methods and report results exclusively in terms of absolute retention time are operating without the most informative parameter the chromatogram provides. Reporting k alongside tR in method development summaries is not additional work. It is more efficient work, because k immediately reveals whether a retention change is analytically consequential or an artifact of a system variable.
Combining retention time with a second orthogonal measurement should be considered a minimum standard for compound identification in research contexts, not an optional enhancement. The statistical framing of retention time tolerance windows in high-resolution screening databases reflects exactly this reasoning: retention time is a necessary but insufficient criterion on its own.
*— Ares*
Explore Aresresearchlab’s research resources for HPLC analysis
Researchers who want to deepen their understanding of chromatographic analysis and compound characterization will find the Aresresearchlab research library an extensive resource, covering topics from HPLC method development to compound purity assessment, retention time interpretation, and analytical quality control. The library is designed to support both foundational understanding and advanced research workflows across metabolic, peptide, and recovery research categories.
Aresresearchlab provides third-party tested research compounds with documented purity data, enabling researchers to use reference standards confidently in HPLC retention time analysis and method validation workflows. For those establishing internal compound libraries or validating analytical methods, the compound grading standards and associated documentation practices outlined in the Aresresearchlab research section offer practical frameworks grounded in HPLC-based purity verification. Researchers can also consult the compound catalog for high-purity reference materials that support consistent retention time benchmarking.
FAQ
What does retention time in HPLC indicate?
Retention time in HPLC indicates the total elapsed time from sample injection until the analyte is detected, reflecting the combined effects of analyte-stationary phase interactions, mobile phase composition, flow rate, and system hardware contributions.
How is retention time used for compound identification?
Retention time is used to match an unknown analyte against a reference compound under identical chromatographic conditions. In automated screening, identity requires both retention time agreement within ± 3 standard deviations and confirmation by an orthogonal parameter such as accurate mass.
What causes retention time shifts between HPLC runs?
Retention time shifts can result from flow rate changes, temperature variation, mobile phase composition drift, column degradation, or gradient dwell volume differences during method transfer. Monitoring dead time (t0) alongside analyte retention allows systematic diagnosis of whether the cause is physical or chemical.
What is the optimal retention factor for HPLC separations?
For isocratic reversed-phase separations, a retention factor k between 1 and 10 is considered optimal, providing efficient resolution without extending run times unnecessarily. Values below 1 risk co-elution with matrix components near the void volume.
Why does retention time differ between HPLC systems for the same method?
Differences in gradient dwell volume between instruments can shift retention times significantly even when the column, mobile phase, and gradient program are identical. Characterizing each system’s dwell volume and adjusting the gradient timing accordingly corrects the discrepancy without altering the underlying chromatographic chemistry.
